Description and technical details

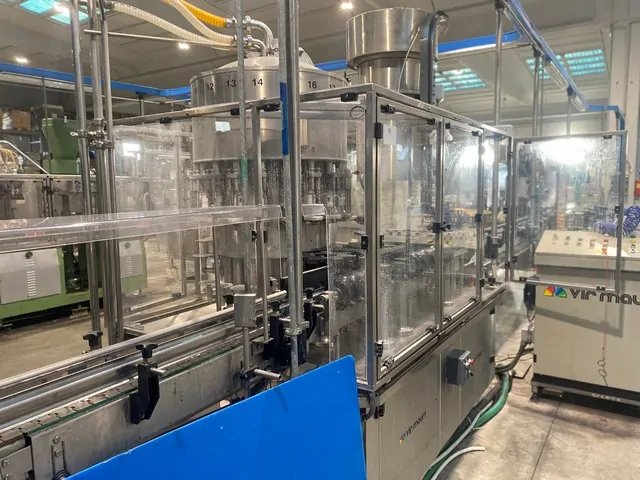

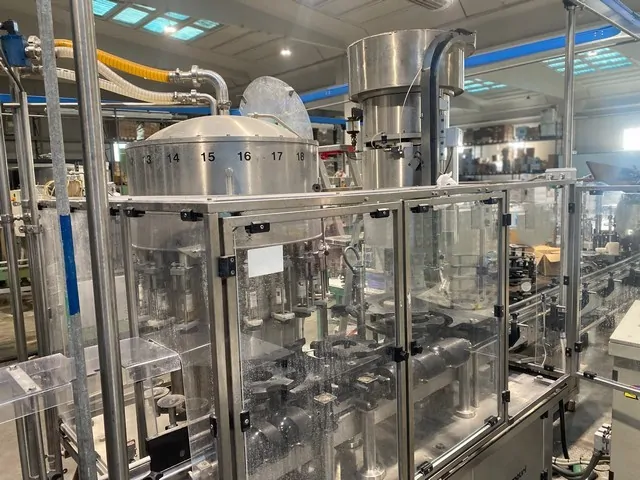

Filling Monoblock Vir Mauri Pavonis 20.4 Sv
Used Filling Monoblock Vir Mauri Pavonis 20.4 Sv:
Model: Pavonis 20/4 Sv
Year: 1992
Speed: 4.000 BPH
Direction: Clockwise
Type of bottle: Glass Bottles

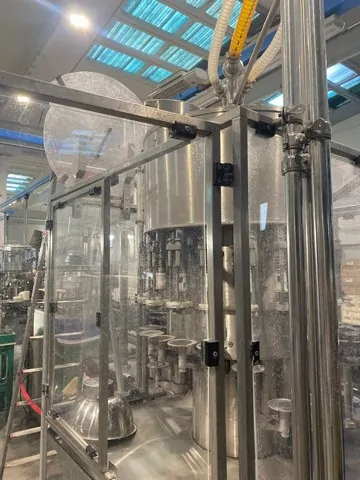

FILLER

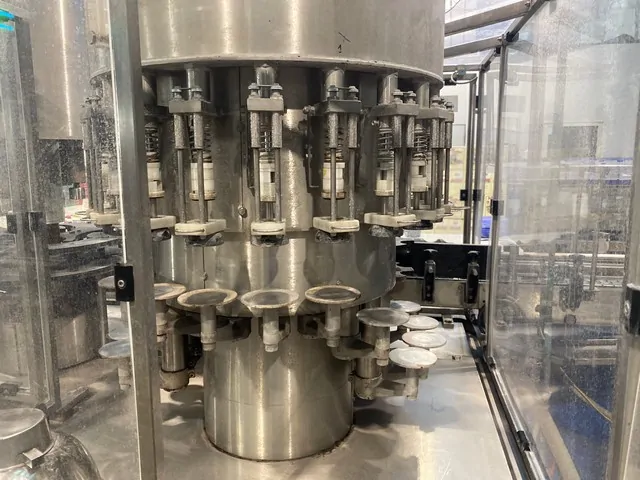

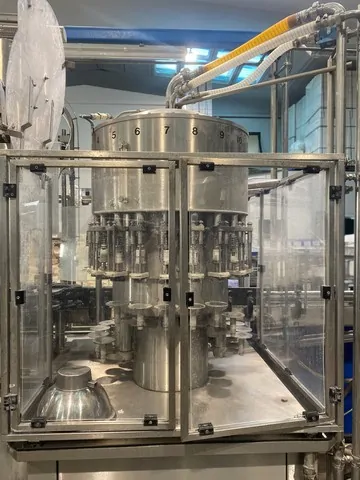

20 Filling Valves
Manual tank height adjustment
Vacuum before filling
Type of valve: mechanical

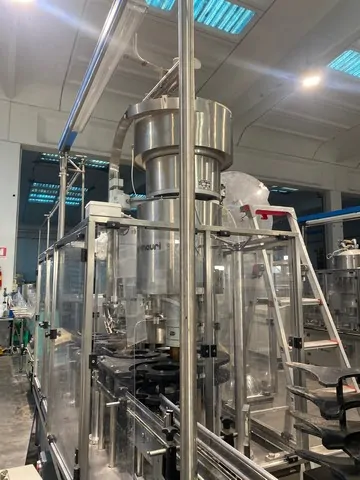

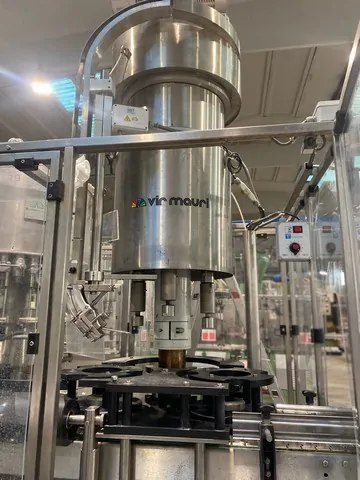

CAPPER SCREW CAP
4 heads
Type of workable cap: pressure cap
Cap size: Ø 33 mm; height 46 mm
Head height adjustment: manual
Can also make aluminum screw cap but no equipment (hopper, descent, capping heads)
GENERAL DATA
Supported bottle diameter measurements: Ø 86 mm; Ø 98 mm; Ø 106 mm
Safety protections
Overall dimensions of machinery: length 2150 mm; width 1590 mm; height 2690 mm
Technical data is synchronised from BottlingScout. Configuration, condition and performance must be confirmed before purchase.
packing patterns, product handling and changeover
What to verify for this project
For secondary-packaging and end-of-line engineers, evaluate this machine in relation to packing patterns, product handling and changeover. Confirm configuration, condition and performance for the destination market: global end-of-line equipment.
