filling monoblock · CFT CFT S 94 / A year 2017 · QT 719

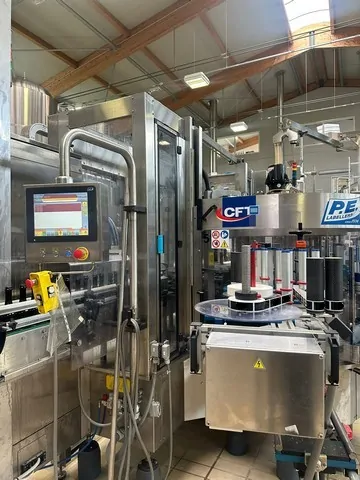

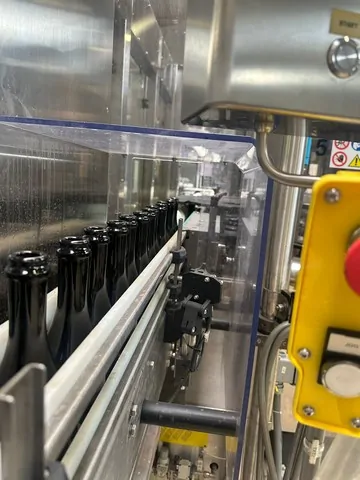

SYNCROBLOC FOR LABELING AND BEER BOTTLING IN GLASS

Model: CFT S 94 / A

Production Capacity: Up to 12,000 bottles/hour

Container Types:

• 0.33 L glass bottles (long neck and champagne type)

• 0.75 L glass bottles (champagne type)

Supported Caps:

• Crown Ø26 mm on 0.33 L long neck bottles

• Crown Ø29 mm on 0.33 L champagne-type bottles

• Crown Ø29 mm on 0.75 L champagne-type bottles

Labeling:

• Self-adhesive front and back labels for 0.33 L long neck bottles

• Wrap-around self-adhesive labels for 0.33 L and 0.75 L champagne-type bottles

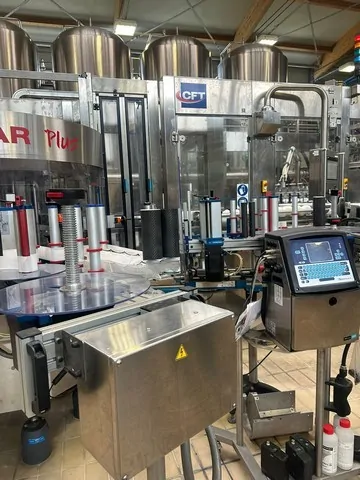

PE LABELER

Maximum Output:

• 12,000 bottles/hour without orientation

• 11,000 bottles/hour with orientation

Operation:

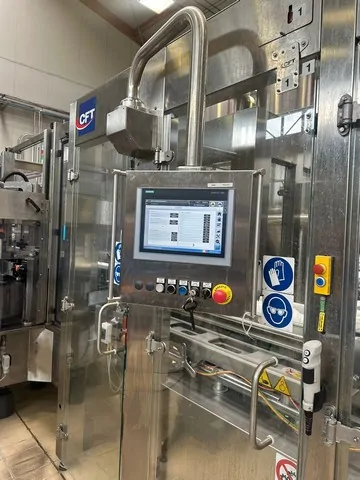

• PLC + touch-screen panel for control

• Automatic speed adjustment via inverter and sensors

• Status indicator column light

Main Components:

• 4 self-adhesive labeling stations

• Optical fiber system for bottle orientation

• Photoelectric sensors for transparent labels

• Label ionizer to eliminate static charges

• No-Stop labeling system (label change without stopping production)

Safety and Structure:

• CE-compliant safety guards with protective doors

• Plate rotation with servo motors and encoders

• Electrical cabinet in stainless steel AISI 304

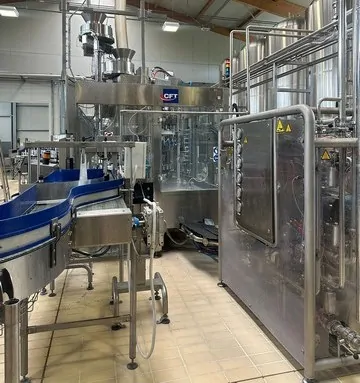

CFT MONOBLOC COMPOSED OF:

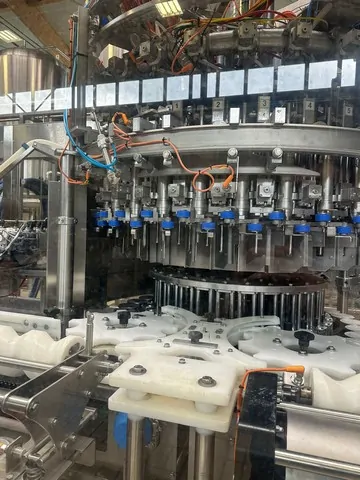

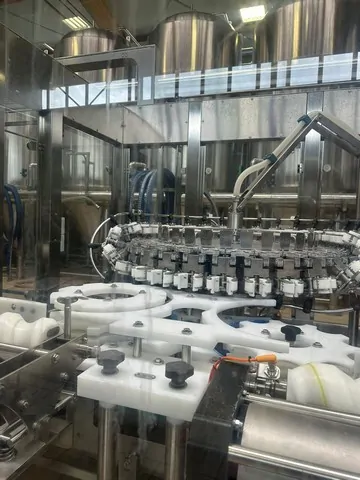

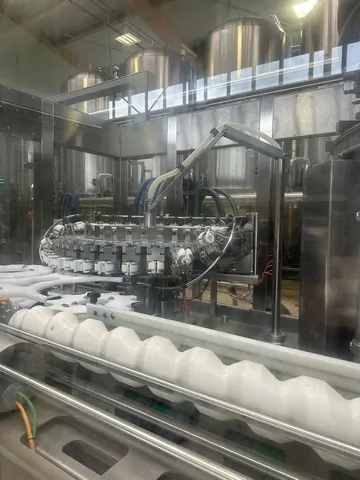

• Fixed nozzle rinser, single treatment, 30 grippers

• Isobaric filler with 30 valves

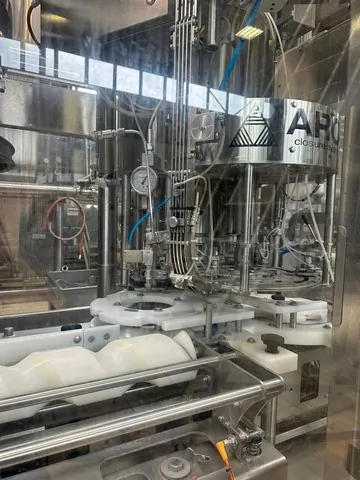

• Crown capper with 6 heads

• Pitch between valves: 113 mm

• Supported bottle diameters: 50 – 98 mm

• Supported bottle heights: 125 – 365 mm

• Production Capacity: 12,000 bph on glass bottles

Filling Features:

• Servo-controlled valves for electronic filling phase management

• MasterTronic system for automatic regulation of filling phases (pre-evacuation, filling, decompression)

• CIP/SIP system for sanitization with automatic dummy bottles

Crown Capper

• Suitable for Ø26 mm and Ø29 mm crown caps

• Centrifugal cap feeder with cap presence sensor

• Pick & Place device for cap transfer

• Pressure heads with magnetic pickup

AUTOMATIC QUALITY CONTROL INSPECTOR

Checks Performed:

• Minimum and maximum filling level (with foam compensation)

• Cap presence via photoelectric sensor

• Label presence with dedicated sensors

• Automatic ejection of non-compliant bottles

Software Features:

• Real-time visualization of filling and production statistics

• Storage for up to 60 bottle formats

• MODBUS connection for remote data management

INKJET CODER

• Printing of codes on bottles and labels

• Support for different types of ink

CAP ELEVATOR
